Step by Step Trouble Shooting

This article tries to provide general steps and details on how to determine a bottleneck in a slow performing ZK application. Additionally, it offers some conclusions and tips, what the next steps would be after identifying the problem area.

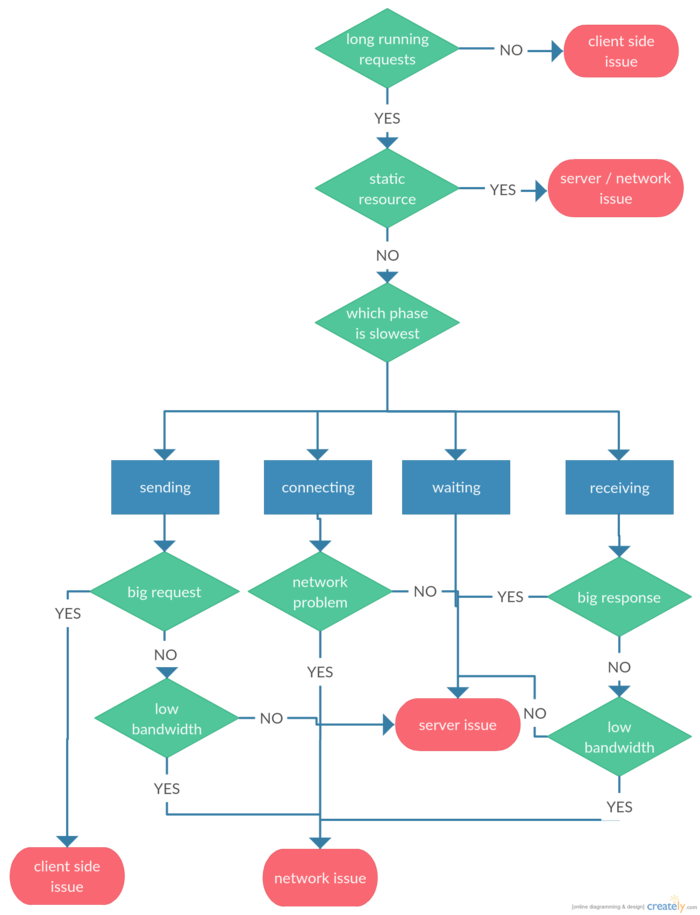

A flow chart to summarize the whole trouble shooting process:

Identify the Bottleneck

Usually the bottleneck can be found in one of these areas:

client
network
server

To breakdown a slow performing web application is a good idea to start, where the bad performance is perceived... in the browser. Most modern browsers provide very sophisticated tools supporting the search for a bottleneck and draw some conclusions, and eliminate other possible causes easily.

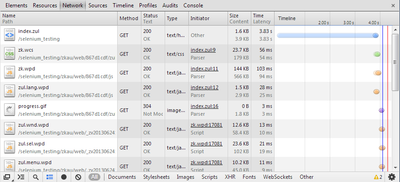

chrome network tab

Developer tools - Net(work): Chrome -> [F12] / [CTRL + SHIFT + I]; Firefox -> [CTRL + SHIFT + Q]; Firefox with Firebug -> [F12]; IE9+ -> [F12]; IE8 & others -> fiddler2

Investigating the network traffic by following the questions below the biggest problem area(s) should become apparent after a few minutes:

1. Are there one or more long running requests?

NO → #Client Side Issue

YES

↓

2. Is it a static resource?

YES (js, css, images...) → check #ZK Server Configuration (debug / cache / compression) → STILL SLOW → #Network Issue

NO (dynamic request into ZK application)

*.zul = full page request (can be followed by ajax requests)
zkau/* = ajax request

↓

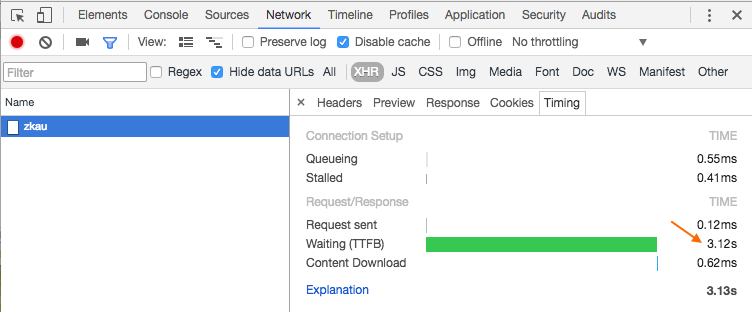

3. Which PHASE of the request is slowest ?

(wording based on Chrome developer tools - EDIT Chrome updated wording and explanations)

CONNECTING (or one of Proxy, DNS Lookup, Blocking, SSL)

3.a) Is this a network problem (everything between browser and ZK Application)?

test ping / trace route to different servers
test dns lookup timing

YES → #Network Issue

NO → #Server Side Issue (application takes long time to accept connection, or even times out)

SENDING

3.b) Is the request unreasonably big? (rare case, usually due to an upload (reasonable), or form posting a lot of data)

YES → #Client Side Issue

NO

↓

3.c) Is the bandwidth low?

e.g. try upload the same amount of data to the server via ftp/scp to check possible upload speed

YES → #Network Issue

NO → #Server Side Issue (application server receiving request data slowly)

WAITING → #Server Side Issue (application server taking long time to prepare response)

Content Download

3.d) Is the response unreasonably big?

YES → #ZK Server Configuration (render on demand / compression)

NO

↓

3.e) Is the bandwidth low?

e.g.try to download the same amount of data from the server via ftp/scp to check download speed

YES → ask your administrator to fix it ;)

NO → #Server Side Issue (appserver sending response data slowly)

Client Side Issue

If there is no significant time spent on the Network and Server side, the slowdown must happen somewhere on the client side.

Client side performance is affected by many factors and may vary with different browser types / versions. Other factors are:

operating system
available memory
CPU speed / load
screen resolution
graphics card speed

So it is good to compare the client performance on different computers with different browsers, to identify the configuration causing the issue.

If client performance among configurations / browsers is equally bad, the issue will more likely be found in the Rendering area → #Client Side Profiling

Once you identified the client side rendering takes very long, check the size of the response, if the Client engine needs to render a lot (e.g. a Grid with 1000 lines) it will take its time. So compare the timing with a smaller response, and consider if this can be prevented by reducing the data sent to the client using Render on Demand or Pagination (Most users don't need 1000 lines visible at once)

Performance degrading over time when using the application (while network and server timings remain constant) might indicate a client side memory leak → #Client Memory Issue

Client Side Profiling

Make sure your local computer is not under heavy CPU load, and has "enough" Memory available, before starting to profile the Javascript execution in the browser.

To measure and break down the time spent in the JS engine you can try the following steps (in chrome), and interpret the results:

Open browser developer tool > Performance tab
click "Record"
perform your action e.g. reload the screen, or load the search results
click "stop"

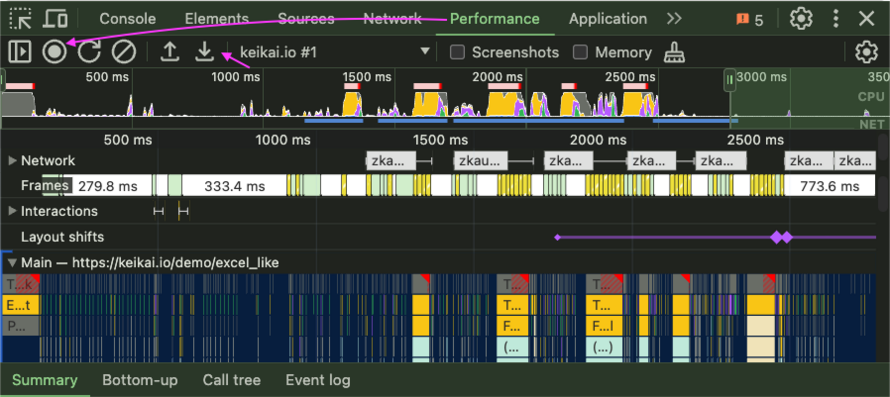

This brilliant visualization of the JS execution flow and stack depth can be used / interpreted in many ways to extract the information you require.

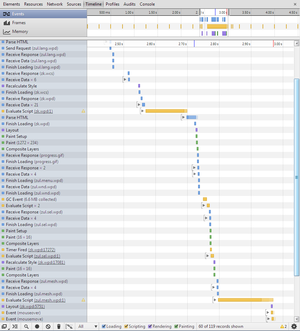

Another interesting view to determine the render time is the Timeline - Events view in Chrome

The timeline on the top indicates the whole period between "start" and "stop", I selected the range we are interested in, and the colorful area at the bottom gives details about which methods are actually called and their timing (you can zoom in and out using the mouse wheel too), clicking on one method will directly lead you to the associated line in the source code (enabling debug-js will help when using this feature).

The small peak (at 2800ms) on the left side is my actual event refreshing the page. The gap until 3300ms represents the idle time of the JS engine waiting for the first response from the server, then you can follow in which order the JS files are executed and which of them consume most of the time.

Additional waiting times in the middle indicate load time of additional JS files and garbage collection times. At about 4450ms the JS engine stops meaning ZK has finished rendering the page widgets and updating the DOM elements.

We can conclude our page took about 1650ms (after the initial event) to load and render in order to become available to the user and there is no significant slowdown on either JS or network side.

General conclusions:

more wider mountains → mean more JS time (e.g. ZK render time, a third party library)
more valleys (flat lines) → mean more waiting time (mostly network, maybe also CSS formatting or other time the browser does not assign to the JS engine)

A similar but less detailed and colorful view is available in Firefox [Shift + F5] showing some basic timeline. And in IE you can also get profiling data.

I find the flame-chart in chrome most powerful, and even if the Performance issue only occurs in a different browser it is a good starting point to visualize the timing of the problem, and understand the complexity of the execution path (e.g. in IE you get the information that most time is spent in method x(), and in chrome you can actually see the method in a bigger context). Or when using an older version of IE, you can define the methods of interest to put some log statements to trace performance manually.

Client Memory Issue

Use a system management tool (e.g. on windows: task manager or process explorer) to watch the memory consumption of your browser over time.

If memory is increasing when repeating an action on a page -> subsequently remove/add items from your ZUL file to identify the component causing this issue.

Again Chrome offers a memory timeline view, real time memory profiling functions and JS heap dumps.

Server Side Issue

After identifying the server side as the bottleneck we can drill down the problem even further.

There are many things on the server side, that can cause a slowdown in the response. Of course you'll first check that there is enough physical memory available and that no other (unrelated) process on the server causes CPU load while you are actually idling in the ZK application.

Basically ensure that the application server has all the resources it needs and is configured to use them:

e.g.

CPUs (multi cores)

the server process might only have limited access to available CPU cores

Memory

you might have a lot of physical memory but the JVM is configured to only use a small amount of that

Incoming connections:

application server might be configured to handle only a small number of simultaneous requests even if it could handle more

→ queueing/denying additional requests exceeding these limits

DB connection pools

there might be a very fast DB waiting for your input, but your connection pools are too small

Then perform the "slow" operation and observe CPU load, IO times and Memory.

Busy or Waiting?

If the CPU is almost idle but most time is spent in IO operations, then it could be a slow or very busy hard disk, or long running network operations (such as accessing external web services or querying a DB on a different host). The network or DB doesn't necessarily have to be slow, it could just be a large accumulating number of very quick calls to external resources.

E.g. 300 requests of 10ms (I would not consider slow) each, still take 3 seconds - during these 3 seconds your java process could be idly waiting for the responses and you'll see a low figure on CPU compared to a high value in IO wait times.

You'll most likely know which external resources you are accessing in your code, so commenting these out and temporarily replacing them with mock implementations will help you exclude these culprits. If you are not aware of any external resources: continue with Server Side Profiling to identify the places that take most time when creating the response.

Here are some helpful tools to determine busy or waiting processes:

Linux:

top (in most cases just sufficient to distinguish between busy or waiting)

Windows:

Process explorer (a better "task manager")
Perfmon.exe (please check this tutorial for more details)

Performance Debugging/Logging/Tracing

Feeling Lucky

Sometimes real profiling might be overkill or you just want to make a few quick probing tests. Then a simple way to find a long running method is to launch your server in debug mode without any break point. Then trigger the slow operation. Right in the middle of the operation, "Suspend" the execution (yes you can suspend manually without defining a break point), in your IDE. You'll have several suspended threads. Just examine their call stacks, and usually the longest stack is the one you are interested in. Then go down in the stack to search for the bottleneck (Chances are high, that you'll suspend the execution during the actual call causing the bottleneck - either it takes a long time to execute, or it is called very very often).

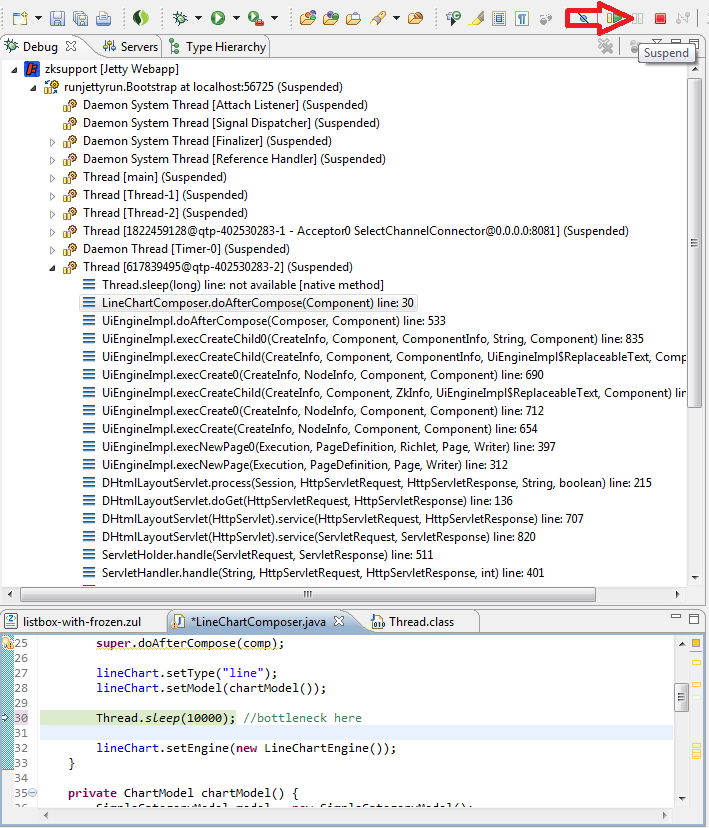

In eclipse a very obvious case might look like this (just imaginarily replace Thread.sleep() with db.query(), url.openConnection(), webService.get() ...):

Not so lucky

In other cases the bottleneck will not be as outstanding as in the above image, but still the call stack can be a good source to start from. e.g. outputting some counters and tracing information to the log.

Putting extra tracing logs will not always be possible and also takes implementation, building, deployment time.

So if this is not quickly possible it is better to do some performance sampling or profiling.

Server Side Profiling

If the JavaVM is busy during the operation or you have no idea which parts in your application consume most of the time, sampling or profiling are the final weapons.

Sampling: analyzes the call stacks of all threads at given intervals and summarizes statistics about which methods are active most of the time

→ sufficient in most cases, will find the biggest bottlenecks at a high chance

Profiling: gives exact more detailed timing, but this is at a cost, you should already know what you are looking for before starting the profiler

→ profiling everything might just "kill" the application

There are several Profiling tools in various price ranges and there is JVisualVM (included in the JDK) so it should be available everywhere.

This is a nice tutorial about how to get started with JVisualVM : Profiling with VisualVM - Part 1 and Part 2

Sampling example using JVisualVM

here is a small example showing 2 different kinds of time performance issues (a busy loop, and a suspended thread (sleeping)):

	@Override
	public void doAfterCompose(Component comp) throws Exception {
		super.doAfterCompose(comp);

		lineChart.setType("line");
		lineChart.setModel(chartModel());

		long start = System.currentTimeMillis();
		while(System.currentTimeMillis() - start < 3000) { //bottleneck here
			StringBuilder builder = new StringBuilder();
			for(int i = 0; i < 100; i++) {
				builder.append(new String("XXX"));
			}
			builder.toString().getBytes(Charset.forName("utf-8"));
		}

		lineChart.setEngine(new LineChartEngine());
	}

	private ChartModel chartModel() throws InterruptedException {
		Thread.sleep(5000); //another bottle neck here
		SimpleCategoryModel model = new SimpleCategoryModel();

		Calendar date = Calendar.getInstance();

		for(int i = 0; i < 10; i++) {
			model.setValue("spent money", date.getTime(), Math.random() * 10000);
			date.add(Calendar.DATE, 1);
		}

		return model;
	}

When executing this slow page, it will delay the page rendering by ~8 seconds, where 3 seconds will be spent in a busy loop (causing a peak on the CPU) doing some useless string building, and 5 seconds you wouldn't notice on your CPU, as the thread is just sleeping.

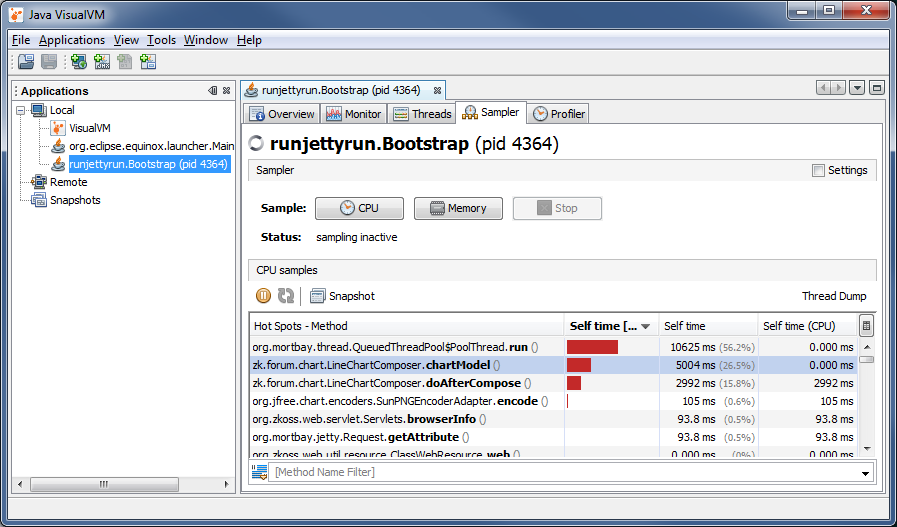

Starting the sampler will show the actual "Hot Spots" like this.

The 2 slow methods appear, then just take a snapshot, and view the details about the actual call stack in the combined view, and filter by the method name.

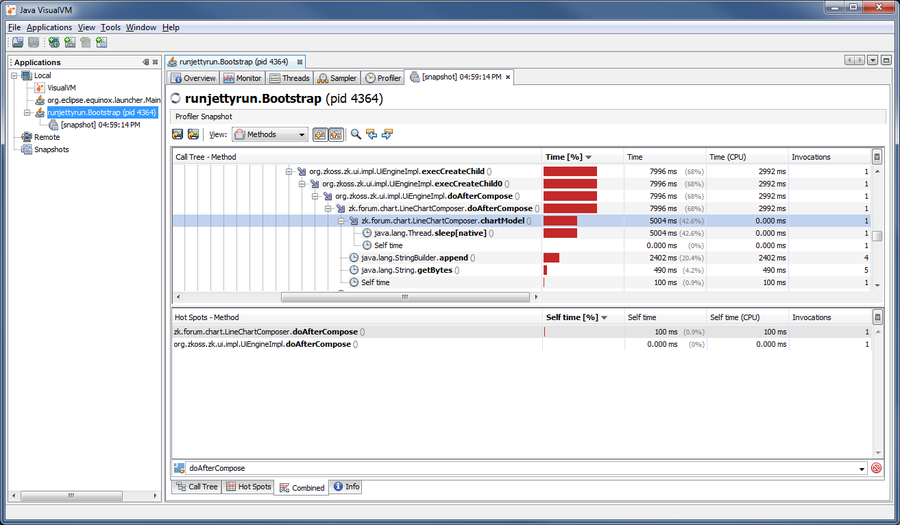

In the call tree we actually see what is happening inside in more detail:

the "chartModel()"-method is sleeping for 5 seconds
and the "doAfterCompose()"-method is performing time consuming String operations for roughly 3 seconds

→ Performance issue located!

Memory Issue

Memory issues come in many different flavors:

The most common ones are explained here http://plumbr.eu/blog/understanding-java-lang-outofmemoryerror.

Ensure your physical memory, and the memory assigned to the JVM are sufficient.

Memory Leak

When running out of heap space, you'll either have a good explanation for it i.e. know that you allocate big lumps of data (and how often) or you might have a memory leak, indicated by your constantly increasing memory, and not being released again, after a Garbage Collection.

Here is a very simple case using JVisualVM. Take this Composer code snippet which allocates a lot of memory.

public class LineChartComposer extends SelectorComposer {
    @Wire("#linechart")
    private Chart lineChart;

    private byte[] bigMemoryBlock = new byte[100 * 1024 * 1024]; //100 MB
    ...

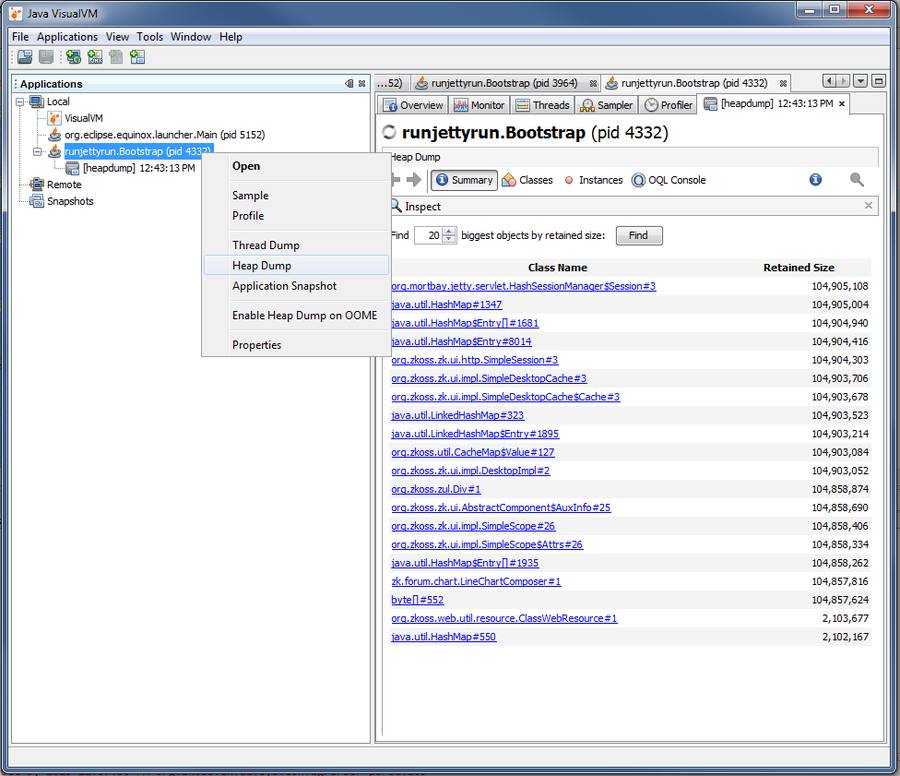

If we don't know where to look in the code we can use a Heap Dump to locate it.

I clicked the "find" button to find the 20 biggest objects on the heap. The results tell us the following.

the 100MB is a big byte-array
our code containing an equally big chunk of memory is the LineChartComposer
the other classes look mostly session/desktop related

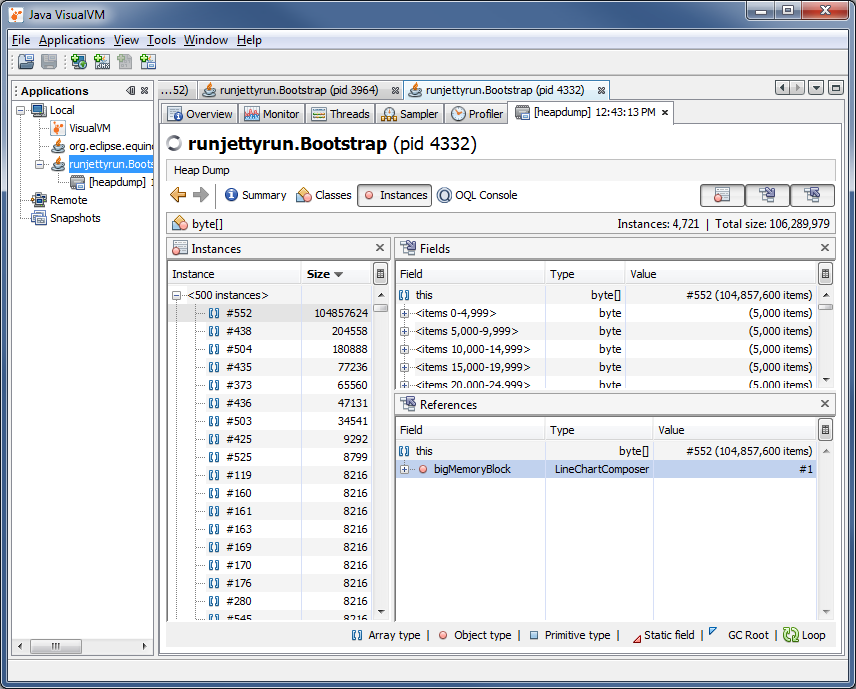

If it wasn't that obvious like here, one can always switch to the "Instances" view and check which objects are referring to this big array.

Also here we could trace the references up to the Desktop/Session objects.

In web applications it is a recurring problem that there are too many sessions consuming too much memory in ZK Desktops (containing the current component tree) for a user are stored in the session. Therefore one should check the following settings:

ZK Session Cleaner

this listener is usually enabled in web.xml, so make sure it is not commented out, or removed.

Session Configuration

check session timeout, either here or in web.xml

check max desktops per session, if you want to put a limit here

Desktop Configuration

if desktops stay alive too long, check the desktop timeout

Usually desktops are destroyed when a page is closed, however in case a browser crashes, this mechanism will not work and the desktop will stay in the session, until it times out, consuming memory for the complete component tree of the orphaned desktop.

Also a good read: 10 Tips for using the Eclipse Memory Analyzer

Monitoring ZK

To check if you have a desktop/session leak, you can add the Statistic-listener to your application, and read its status in a simple monitoring page (keep in mind, that this page will consume an additional desktop).

Add a listener to zk.xml

<listener>
	<listener-class>org.zkoss.zk.ui.util.Statistic</listener-class>
</listener>

Example of a small monitoring page:

<zk>
   <label multiline="true">
      Active Desktops: ${desktop.webApp.configuration.monitor.activeDesktopCount}
      Active Sessions: ${desktop.webApp.configuration.monitor.activeSessionCount}

      Total Desktops: ${desktop.webApp.configuration.monitor.totalDesktopCount}
      Total Sessions: ${desktop.webApp.configuration.monitor.totalSessionCount}
   </label>
</zk>

Or you can access Statistics in Java code:

 Statistic statistic = (Statistic) WebApps.getCurrent().getConfiguration().getMonitor();
 statistic.getActiveDesktopCount();
 statistic.getActiveSessionCount();

ZK Server Configuration

check debug mode → zk config should not be enabled (disabled by default)
- http://books.zkoss.org/wiki/ZK_Configuration_Reference/zk.xml/The_client-config_Element/The_debug-js_Element

check caching config → should not be disabled (enabled by default)

check compression settings → should not be disabled (enabled by default)
- http://books.zkoss.org/wiki/ZK_Configuration_Reference/web.xml/ZK_AU_Engine#The_Initial_Parameters
- http://books.zkoss.org/wiki/ZK_Configuration_Reference/web.xml/ZK_Loader#The_Initial_Parameters

consider/check render on demand settings

check http://books.zkoss.org/wiki/ZK_Developer%27s_Reference/Performance_Tips

Network Issue

If something in your network infrastructure (routers, proxies, web servers...) is causing the performance issues, there is little you can do as a web application developer.

Here are some ideas to identify possible bottlenecks trying to reduce network complexity by:

using ip addresses directly to circumvent DNS look-ups → speedup might indicate a problem with your DNS server
avoiding proxies, routers, firewalls (e.g. access the application server from a browser on a remote desktop "closer" to the actual server)
accessing the application server directly, instead of going through a webserver or load balancer
disabling SSL and check difference

→ "Kindly" inform your network administrator about your observations and ask for help identifying, excluding, fixing these infrastructure problems.

Java Profiling Tool

If you find the performance bottleneck is at the server-side, you need to profile your java program to locate which method is most time-consuming with a java profiling tool.

VisualVM is a java profiling tool bundled with JDK (or you can download from its website).

You can watch the following :

Limit Profile Packages

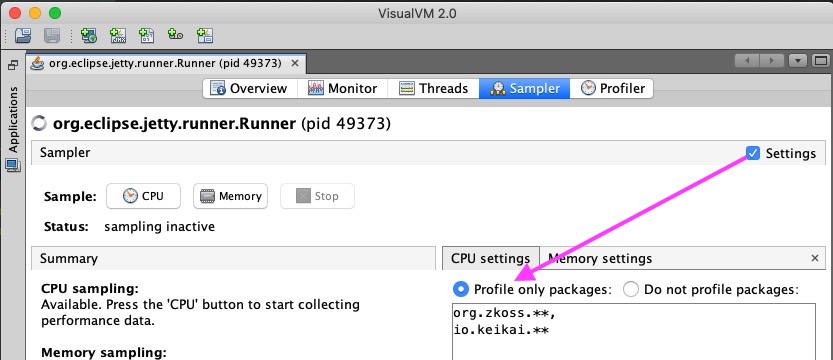

When using Sampler or Profiler, it's better to specify Profile only packages in the settings. Therefore, it will only show those classes you concern instead of irrelevant classes.

Locate Hot Spots

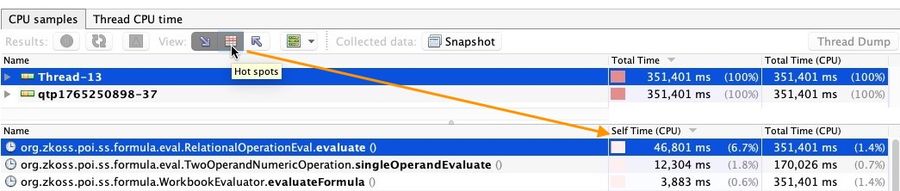

After you start the CPU sampler/profiler, you can click the "hotspot" to show you the most time-consuming method:

Show Calling Hierarchy

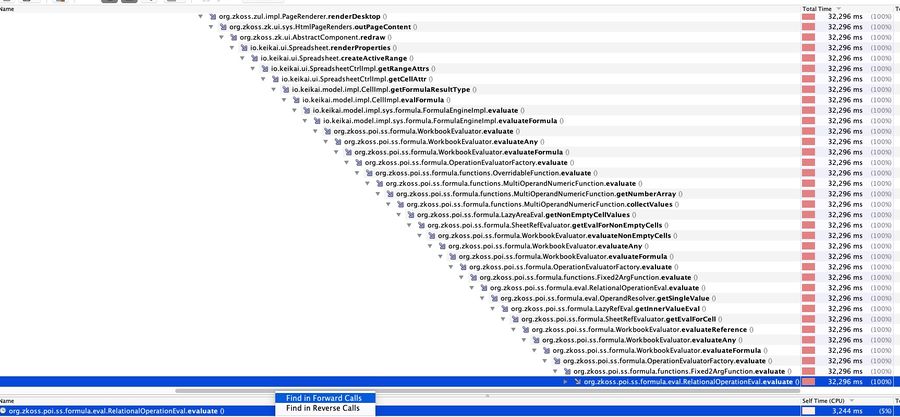

Right-click on a method, choose "Find in Forward Call", it will list the calling hierarchy to the selected method. Help you to locate source calling method.

Last Update : 2024/11/28

Anonymous

Step by Step Trouble Shooting

Namespaces

More

Page actions

Contents

Step by Step Trouble Shooting

Identify the Bottleneck

Client Side Issue

Client Side Profiling

Client Memory Issue

Server Side Issue

Performance Debugging/Logging/Tracing

Feeling Lucky

Not so lucky

Server Side Profiling

Memory Issue

Memory Leak

Monitoring ZK

ZK Server Configuration

Network Issue

Java Profiling Tool

Limit Profile Packages

Locate Hot Spots

Show Calling Hierarchy
