Tree Model
Here we describe how to implement a tree model (TreeModel). You shall understand the interaction among a component, a model, and a renderer, please refer to the Model-driven Display section.
Choose a Proper Model Class
A TreeModel is the data model of a tree-like component, such as Tree.
If the tree data is small enough to be loaded completely into a TreeModel, you can use DefaultTreeModel which accepts DefaultTreeNode to construct a tree[1].
In a more complicated case, if you want to implement custom logic like load-on-demand and caching. Maybe the data is too large to load them all into a TreeModel at once. Then, we suggest you to extend AbstractTreeModel, which will handle the data listeners transparently.
- ↑ DefaultTreeModel is available since 5.0.6. For 5.0.5 or prior, please use SimpleModel, which is similar except it assumes the tree structure is immutable
Example: In-Memory Tree with DefaultTreeModel
Since 5.0.6
If you prefer to use TreeNode to construct the tree dynamically, you can use DefaultTreeModel and DefaultTreeNode. The usage is straightforward, but it means that the whole tree must be constructed before it is displayed.
For example, suppose we want to show a tree of file information, and the file information is stored as FileInfo:
public class FileInfo {
public final String path;
public final String description;
public FileInfo(String path, String description) {
this.path = path;
this.description = description;
}
}
Then, we can create a tree of file information with DefaultTreeModel as follows:
TreeModel model = new DefaultTreeModel(
new DefaultTreeNode(null,
new DefaultTreeNode[] {
new DefaultTreeNode(new FileInfo("/doc", "Release and License Notes")),
new DefaultTreeNode(new FileInfo("/dist", "Distribution"),
new DefaultTreeNode[] {
new DefaultTreeNode(new FileInfo("/lib", "ZK Libraries"),
new DefaultTreeNode[] {
new DefaultTreeNode(new FileInfo("zcommon.jar", "ZK Common Library")),
new DefaultTreeNode(new FileInfo("zk.jar", "ZK Core Library"))
}),
new DefaultTreeNode(new FileInfo("/src", "Source Code")),
new DefaultTreeNode(new FileInfo("/xsd", "XSD Files"))
})
}
));
Here, we render FileInfo in a custom renderer:
import org.zkoss.zul.*;
public class FileInfoRenderer implements TreeitemRenderer<DefaultTreeNode<FileInfo>> {
public void render(Treeitem item, DefaultTreeNode<FileInfo> data, int index) throws Exception {
FileInfo fi = data.getData();
Treerow tr = new Treerow();
item.appendChild(tr);
tr.appendChild(new Treecell(fi.path));
tr.appendChild(new Treecell(fi.description));
}
}
Next, bind them together in a composer:
public class FileInfoTreeController extends SelectorComposer {
@Wire
private Tree tree;
@Override
public void doAfterCompose(Div div) throws Exception{
super.doAfterCompose(div);
tree.setModel(new DefaultTreeModel(..../*as shown above*/));
tree.setItemRenderer(new FileInfoRenderer());
}
}
Then, we can put them together in a ZUML document:
<div apply="org.zkoss.reference.developer.mvc.model.FileInfoTreeController">
<tree id="tree">
<treecols>
<treecol label="Path"/>
<treecol label="Description"/>
</treecols>
</tree>
</div>

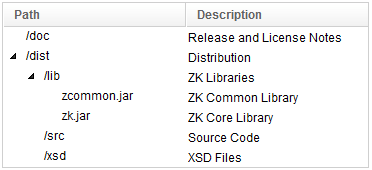

Then, the result:
Notice that you can manipulate the tree dynamically (such as adding a node with DefaultTreeNode.add(TreeNode)). The tree shown at the browser will be modified accordingly.
Example: Create/Update/Delete operation with DefaultTreeNode
Since 5.0.6
The benefit of using DefaultTreeNode is it will notify Tree (or the component associated with a TreeModel) about the node change including adding, deleting, and updating. (The underlying implementation is DefaultTreeNode will fire an event when you call its add(), insert(), setData(), removeFromParent()).
To demonstrate the example, first we add create, update and delete buttons in a .zul:
<tree id="tree">
...
</tree>
<grid>
<auxhead>
<auxheader colspan="2" label="Add/Edit FileInfo" />
</auxhead>
<columns visible="false">
<column />
<column />
</columns>
<rows>
<row>
<cell><textbox id="pathTbx" /></cell>
<cell><textbox id="descriptionTbx" width="300px"/></cell>
</row>
<row>
<cell colspan="2" align="center">
index: <intbox id="index" />
<button id="create" label="Add to selected parent node" />
<button id="update" label="update" />
<button id="delete" label="delete" />
</cell>
</row>
</rows>
</grid>
The intbox here is for specifying index to insert before the selected tree item.
Add/Insert
DefaultTreeNode provides DefaultTreeNode.add(TreeNode) and DefaultTreeNode.insert(TreeNode, int) that can manipulate the tree dynamically.
Here we register onClick event to create Button in foo.FileInfoTreeController:
//wire components as member fields
private Textbox pathTbx;
private Textbox descriptionTbx;
private Intbox index;
//register onClick event for creating new object into tree model
public void onClick$create() {
String path = pathTbx.getValue();
String description = descriptionTbx.getValue();
if ("".equals(path)) {
alert("no new content to add");
} else {
Treeitem selectedTreeItem = tree.getSelectedItem();
DefaultTreeNode newNode = new DefaultTreeNode(new FileInfo(path, description));
DefaultTreeNode selectedTreeNode = null;
Integer i = index.getValue();
// if no treeitem is selected, append child to root
if (selectedTreeItem == null) {
selectedTreeNode = (DefaultTreeNode) ((DefaultTreeModel) tree.getModel()).getRoot();
if (i == null) // if no index specified, append to last.
selectedTreeNode.add(newNode);
else // if index specified, insert before the index number.
selectedTreeNode.insert(newNode, i);
} else {
selectedTreeNode = (DefaultTreeNode) selectedTreeItem.getValue();
if (selectedTreeNode.isLeaf())
selectedTreeNode = selectedTreeNode.getParent();
if (i == null)
selectedTreeNode.add(newNode);
else
selectedTreeNode.insert(newNode, i);
}
}
}
If index is not specified, we add a new node using DefaultTreeNode.add(TreeNode) at the bottom of the parent node by default, or we can also use DefaultTreeNode.insert(TreeNode, int) to insert a new node before the specified index.
Update/Delete
DefaultTreeNode provides DefaultTreeNode.setData(Object) which can update selected tree items and DefaultTreeNode.removeFromParent() that can delete the selected tree item from its parent node.
Here we register onClick event to update and delete Button in foo.FileInfoTreeController:
//register onClick event for updating edited data in tree model
public void onClick$update() {
Treeitem selectedTreeItem = treeGrid.getSelectedItem();
if(selectedTreeItem == null) {
alert("select one item to update");
} else {
DefaultTreeNode selectedTreeNode = (DefaultTreeNode) selectedTreeItem.getValue();
//get current FileInfo from selected tree node
FileInfo fileInfo = (FileInfo) selectedTreeNode.getData();
//set new value of current FileInfo
fileInfo.setPath(pathTbx.getValue());
fileInfo.setDescription(descriptionTbx.getValue());
//set current FileInfo in the selected tree node
selectedTreeNode.setData(fileInfo);
}
}
//register onClick event for removing data in tree model
public void onClick$delete() {
final Treeitem selectedTreeItem = treeGrid.getSelectedItem();
if(selectedTreeItem == null) {
alert("select one item to delete");
} else {
DefaultTreeNode selectedTreeNode = (DefaultTreeNode) selectedTreeItem.getValue();
selectedTreeNode.removeFromParent();
}
}
For updating tree node data, we have to modify render() of foo.FileInfoRenderer:
public void render(Treeitem item, DefaultTreeNode<FileInfo> data, int index) throws Exception {
FileInfo fi = data.getData();
if (tr == null) {
tr = new Treerow();
}else{
tr.getChildren().clear();
}
item.appendChild(tr);
tr.appendChild(new Treecell(fi.path));
tr.appendChild(new Treecell(fi.description));
}
Example: Load-on-Demand Tree with AbstractTreeModel
Implementing all TreeModel directly provides the maximal flexibility, such as load-on-demand and caching. For example, you don't have to load a node until TreeModel.getChild(Object, int) is called. In addition, you could load and cache all children of a given node when TreeModel.getChild(Object, int) is called the first time against a particular node, and then return a child directly if it is in the cache.
For example (pseudo code):
public class MyModel extends AbstractTreeModel<Object> {
public Object getChild(Object parent, int index) {
Object[] children = _cache.get(parent); //assume you have a cache for children of a given node
if (children == null)
children = _cache.loadChildren(parent); //ask cache to load all children of a given node
return children[index];
}
...
By extending from AbstractTreeModel, you have to implement three methods: TreeModel.getChild(Object, int), TreeModel.getChildCount(Object), and TreeModel.isLeaf(Object). Optionally, you could implement TreeModel.getIndexOfChild(Object, langObject)[1], if you have a better algorithm than iterating through all children of a given parent.
Improving Performance
You should override TreeModel.getPath(E) to implement an efficient way to deduce the sibling index of each ancestor of a node. Because the default implementation of getPath() in AbstractTreeModel will traverse from the root node to compute the index which is inefficient with lots of nodes. Such node traversing will call getChild() and load unnecessary nodes from the data source which consume more memory.
An Example
Here is a simple example, which generates a 4-level tree and each branch has 5 children:
package foo;
public class LoadOnDemandModel extends AbstractTreeModel<Object> {
public LoadOnDemandModel() {
super("Root");
}
public boolean isLeaf(Object node) {
return getLevel((String)node) >= 4; //at most 4 levels
}
public Object getChild(Object parent, int index) {
return parent + "." + index;
}
public int getChildCount(Object parent) {
return isLeaf(parent) ? 0: 5; //each node has 5 children
}
public int getIndexOfChild(Object parent, Object child) {
String data = (String)child;
int i = data.lastIndexOf('.');
return Integer.parseInt(data.substring(i + 1));
}
private int getLevel(String data) {
for (int i = -1, level = 0;; ++level)
if ((i = data.indexOf('.', i + 1)) < 0)
return level;
}
};
Then, we assign this model to a tree:
<?taglib uri="http://www.zkoss.org/dsp/web/core" prefix="c" ?>
<tree model="${c:new('org.zkoss.reference.developer.mvc.model.LoadOnDemandModel')}">
<treecols>
<treecol label="Names"/>
</treecols>
</tree>

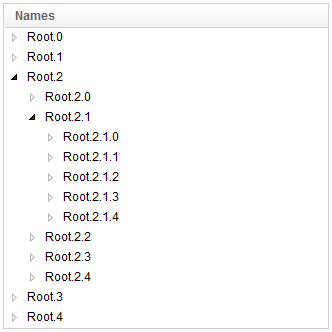

And, the result looks like this:
Sorting
Interface: Sortable Implementation: You have to implement it explicitly
To support the sorting, the model must implement Sortable too. Thus, when the end user clicks the header to request the sorting, Sortable.sort(Comparator, boolean) will be called.
For example, (pseudo code)
public class FooModel extends AbstractTreeModel implements Sortable {
public void sort(Comparator cmpr, final boolean ascending) {
sortData(cmpr); //sort your data here
fireEvent(ListDataEvent.CONTENTS_CHANGED, -1, -1); //ask component to reload all
}
...
Notice that the ascending parameter is used only for reference and you usually don't need it, since the cmpr is already a comparator capable to sort in the order specified in the ascending parameter.
Selection
Interface: TreeSelectableModel Implementation: Implemented by AbstractTreeModel
If your data model also provides the collection of selected elements, you shall also implement TreeSelectableModel. When using with a component supporting the selection (such as Tree), the component will invoke TreeSelectableModel.isPathSelected(int[]) to display the selected elements correctly. In addition, if the end user selects or deselects an item, TreeSelectableModel.addSelectionPath(int[]) and TreeSelectableModel.removeSelectionPath(int[]) will be called by the component to notify the model that the selection is changed. Then, you can update the selection into the persistent layer (such as database) if necessary.
On the other hand, when the model detects the selection is changed (such as TreeSelectableModel.addSelectionPath(int[]) is called), it has to fire the event, such as TreeDataEvent.SELECTION_CHANGED to notify the component. It will cause the component to correct the selection[2].
All default implementations, including AbstractTreeModel and DefaultTreeModel implement TreeSelectableModel. Thus, your implementation generally doesn't have to implement it explicitly.
It is important to note that, once a tree is assigned with a tree model, the application shall not manipulate the tree items and/or change the selection of the tree directly. Rather, the application shall access only the list model to add, remove and select data elements. Let the model notify the component what has been changed.
- ↑ TreeModel.getIndexOfChild(Object, langObject) is available in 5.0.6 and later.
- ↑ Don't worry. The component is smart enough to prevent the dead loop, even though the component invokes
addSelectionPath()to notify the model while the model fires the event to notify the component.
Selection Control
Since 8.0.0
With the multiple selection function in a data model, you have to implement a class for the SelectionControl to tell the data model which items are selectable and what it will perform a "select all" function with. The following implementation which extends AbstractTreeModel.DefaultSelectionControl is a simple example to change "selectable" items.
Please note that if your data model is much larger, you may implement on it your own to get rid of the performance impact.
model.setSelectionControl(new AbstractTreeModel.DefaultSelectionControl(model) {
public boolean isSelectable(Object e) {
int i = model.indexOf(e);
return i % 2 == 0;
}
});
Open Tree Nodes
Interface: TreeOpenableModel Implementation: Implemented by AbstractTreeModel
By default, all tree nodes are closed. To control whether to open a tree node, you could implement TreeOpenableModel. More importantly, to open a tree node, the application shall access the model's TreeOpenableModel API, rather than accessing Treeitem directly.
All default implementations, including AbstractTreeModel and DefaultTreeModel implement TreeOpenableModel. Thus, your implementation generally doesn't have to implement it explicitly.
Note: If your tree model contains a lot of nodes, please also implement TreeModel.getPath(E) to get better performance, by default it is implemented by Depth-first search to get the path from a tree node.
Leaf Node
The DefaultTreeNode has 2 constructors:
DefaultTreeNode(data): create a leaf node which cannot have children added to it.DefaultTreeNode(data, children): create a branch node which can have children added to it.
ZK renders a rotating triangle to expand/collapse a node in front of a branch node, but a leaf node doesn't have that triangle.
If you want to display a leaf node, you should use DefaultTreeNode(data), otherwise even if you provide a zero-size list for DefaultTreeNode(data, children) constructor, ZK tree will still render the node as a branch node that contains no children. So when you expand the node, it shows nothing. It might confuse users.
Since 5.0.12 / 6.0.3 / 6.5.1
DefaultTreeModel's constructor accepts the 2nd boolean argument to determine whether to render a branch node without children as a leaf node.
DefaultTreeModel model2 = new DefaultTreeModel(root, true);
Version History
| Version | Date | Content |
|---|---|---|
| 5.0.6 | January 2011 | TreeNode, DefaultTreeNode and DefaultTreeModel were intrdocued. |
| 6.0.0 | February 2012 | TreeSelectableModel and TreeOpenableModel were introduced to replace Selectable and Openable. |
| 5.0.12 / 6.0.3 / 6.5.1 | October 2012 | DefaultTreeModel adds a new constructor for configuring whether to treat the zero size of children node as a leaf node. |
